Revival 640 Sportz

$0.00
* Sail Away
Send an Enquiry
imgi_49_61eee9_ae74763ec17e45ad989c1129aa1a9733~mv2_d_3008_2008_s_2
imgi_50_61eee9_15b6e18d1a6740c7beca0e3551373f5e~mv2_d_3840_2160_s_2
imgi_51_61eee9_554ee4518408403292354c254e39525c~mv2_d_3008_2008_s_2
imgi_52_61eee9_3f05a918dc1d4ceb9751dd03f9b45d08~mv2_d_2774_1852_s_2
imgi_55_61eee9_3145bb030814458b83d6cb5ce1e7e982~mv2_d_2812_1876_s_2
imgi_57_61eee9_5d4b6c73356841dfa99a4f42c0db465e~mv2_d_3008_2008_s_2
imgi_58_61eee9_d70a0f4ba1b944b2ba5a34aac0a0ac4c~mv2_d_2778_1854_s_2
imgi_59_61eee9_b7029c293739495d926a5e7836daced6~mv2_d_2897_1934_s_2
imgi_60_61eee9_c2fc247a49d547cab87544eb40f5b86b~mv2_d_2760_1842_s_2
imgi_65_61eee9_ff74adf449d440229f2a6697d31af80f~mv2_d_2272_1704_s_2
imgi_66_61eee9_886efbe77d244243aa38e94c30a3c7a6~mv2_d_2272_1704_s_2
imgi_68_61eee9_a1d894a023dc42a1b57ded901577841d~mv2_d_2272_1704_s_2
imgi_71_61eee9_6478d3035b074dea8ca814784d87d139~mv2_d_2272_1704_s_2
Click to zoom / enlarge this image
imgi_49_61eee9_ae74763ec17e45ad989c1129aa1a9733~mv2_d_3008_2008_s_2
imgi_50_61eee9_15b6e18d1a6740c7beca0e3551373f5e~mv2_d_3840_2160_s_2
imgi_51_61eee9_554ee4518408403292354c254e39525c~mv2_d_3008_2008_s_2
imgi_52_61eee9_3f05a918dc1d4ceb9751dd03f9b45d08~mv2_d_2774_1852_s_2
imgi_55_61eee9_3145bb030814458b83d6cb5ce1e7e982~mv2_d_2812_1876_s_2
imgi_57_61eee9_5d4b6c73356841dfa99a4f42c0db465e~mv2_d_3008_2008_s_2
imgi_58_61eee9_d70a0f4ba1b944b2ba5a34aac0a0ac4c~mv2_d_2778_1854_s_2
imgi_59_61eee9_b7029c293739495d926a5e7836daced6~mv2_d_2897_1934_s_2
imgi_60_61eee9_c2fc247a49d547cab87544eb40f5b86b~mv2_d_2760_1842_s_2
imgi_65_61eee9_ff74adf449d440229f2a6697d31af80f~mv2_d_2272_1704_s_2
imgi_66_61eee9_886efbe77d244243aa38e94c30a3c7a6~mv2_d_2272_1704_s_2
imgi_68_61eee9_a1d894a023dc42a1b57ded901577841d~mv2_d_2272_1704_s_2
imgi_71_61eee9_6478d3035b074dea8ca814784d87d139~mv2_d_2272_1704_s_2

Mechanical Steering

Steering

6.4 metres

Length

Fibreglass

Hull Material

Mono

Hull Type

Details Specifications Features & Options
Boat Details
  • Make: Revival
  • Name: 640 Sportz
  • Model Number: 640 Sportz
  • Year: 2026
  • Length: 6.4 metres
  • Width: 2.48 metres
  • Dry Weight: 2175 kg
  • Hull Material: Fibreglass
  • Hull Type: Mono
  • Passenger Capacity: 8
  • Boat Usage: Fishing
  • Steering: Mechanical Steering
  • Warranty: Contact Dealer

Revival's R640 OffShore redefines the the offshore trailer boat landscape with a 6.5m full-figured hull that treats rough conditions with contempt while treating your family and crew to a soft, dry and quiet ride. Equal parts, mini game boat and family cruiser, this big hull demands respect. Undeniably tough, yet refined and sophisticated, the R640 SportZ, OffShore and Hard Top variants proves that Hard-Core CAN have a soft side!

Hull Length (mm)6400mm
Hull Beam (mm)2480mm
Transom Deadrise21 degrees
Transom Height (inches)25"/XL
Height on Trailer to top of Windscreen2450mm
Overall Length on Trailer (mm)8200mm
Draft (mm)300mm
Hull Weight (kg) - dry1200kg
BMT Weight (kg) - dry2175kg* (Subject to variation)
Fuel Capacity (lt)200lt
Number of People8 Adults
Horsepower150 - 225hp
Max Outboard Weight (kg)290kg
Estimated Cruise Speed (kph) w/Mid-Range hp45kph
Estimated WOT Speed (kph) w/Mid-Range hp72kph
Internal Cockpit Length (mm)1800mm
Internal Cockpit Beam (mm)2000mm
  • Anchor Storage Compartment with Large Front Opening Hatch

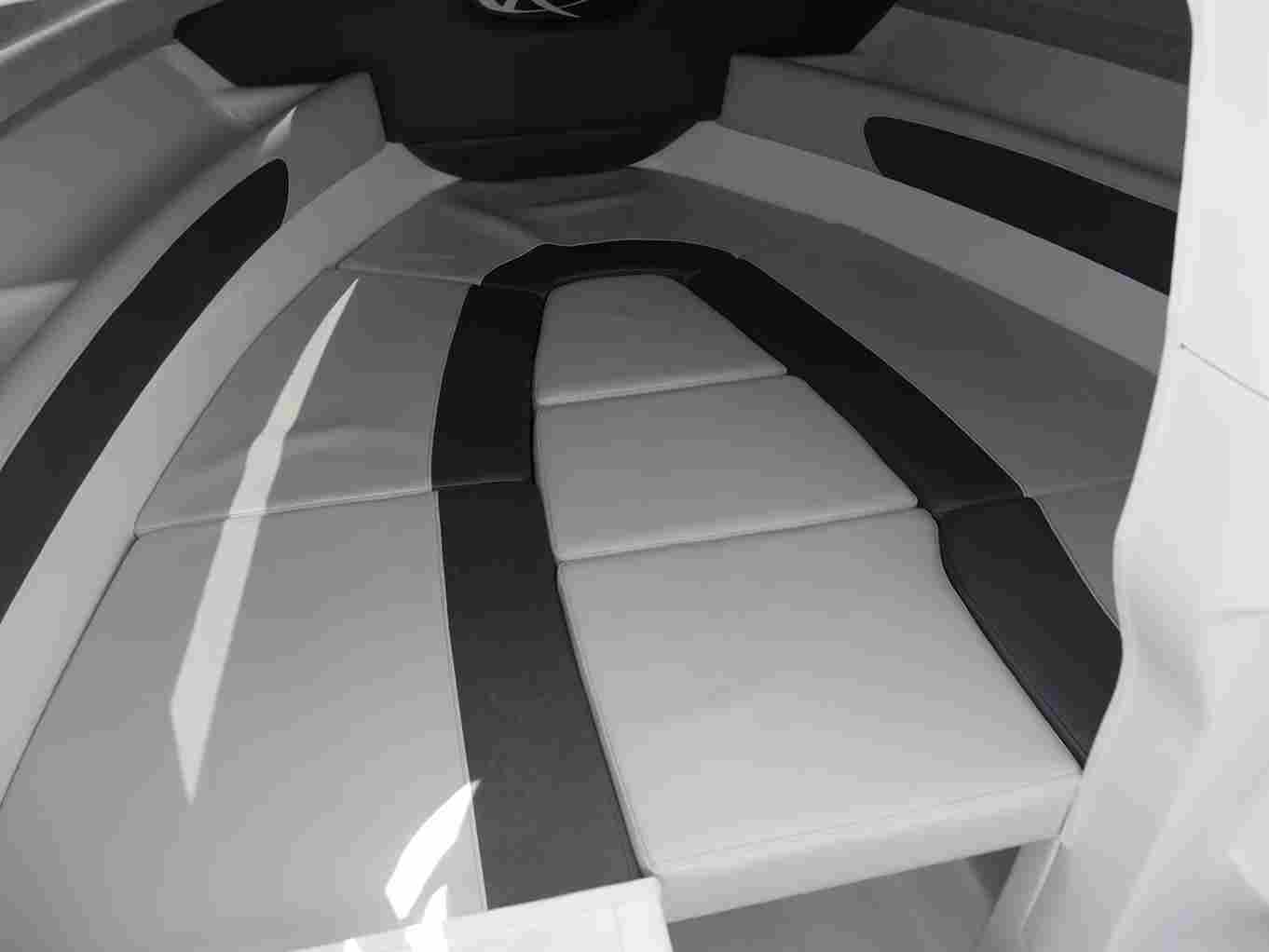

  • Backrest and Bunks in Cabin - Upholstered Vinyl
  • Bilge Pump Hose and Outlet
  • Bollard Split - Stainless Steel
  • Bow Roller - Stainless Steel
  • Cabin Headlining

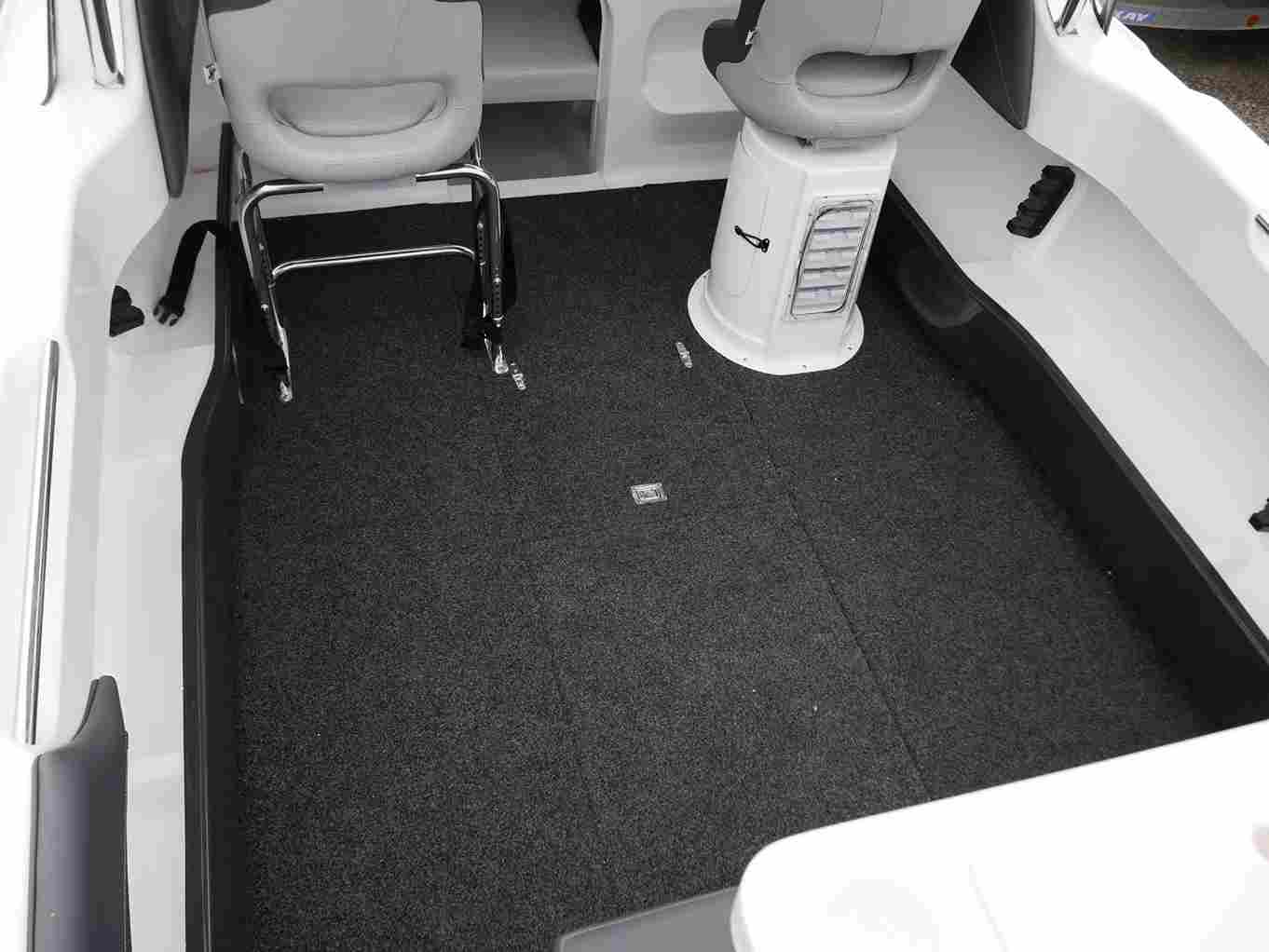

  • Carpeted Floor and Sides - Glued
  • Coaming Lights (2)
  • Cockpit Side Pockets - Fibreglass gelcoated white
  • Composite Fibreglass Stringer System Moulded Liner
  • Hydraulic Steering with Sports Steering Wheel
  • Hull and Deck - All White Gelcoat with Edition Specific Stripes and Graphics
  • Large Forward Storage/Casting Area with Open and Concealed Storage Bins
  • Mechanical Steering
  • Navigation Lights

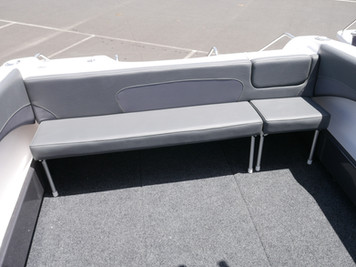

  • Padded transom Backrest Rear of Cockpit with Removable Fold-Down Rear Lounge
  • Padded Side Pckets in Cabin - Vinyl
  • Panic Rail for Passenger - Stainless Steel
  • Port-side Coaming Storage Compartment

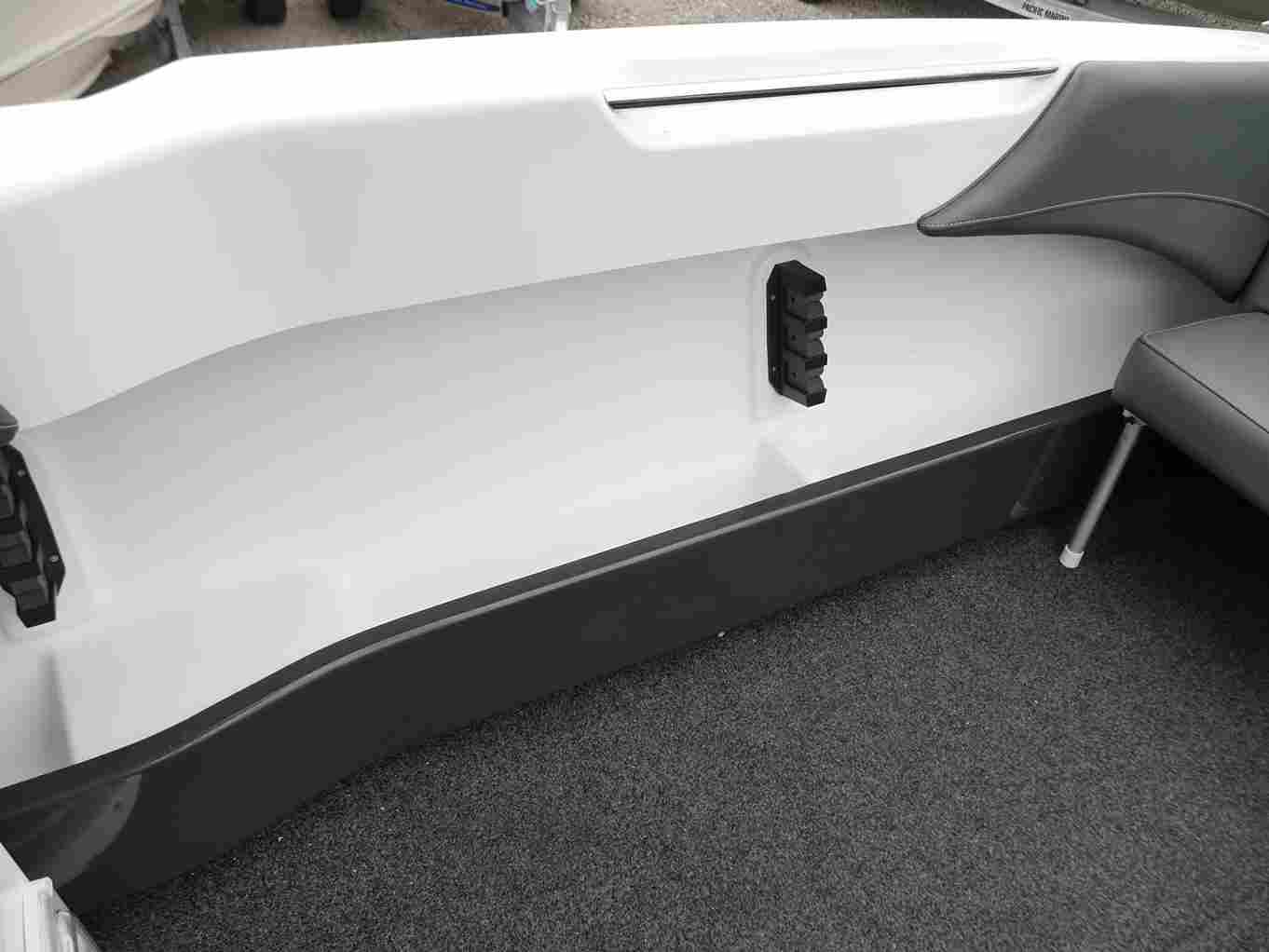

  • Port and Starboard Recessed Cockpit Grab Rails
  • Rear Starboard-Side Bait Well that Drains Overboard - Not Plumbed
  • Rear Pop-Up Cleats - Stainless Steel (2)
  • Rear Door/Step
  • Rear Tow Eyes - Stainless Steel (2)
  • Split Bowrails - Stainless Steel
  • Standard Plastic Rear Rod Holders (2)

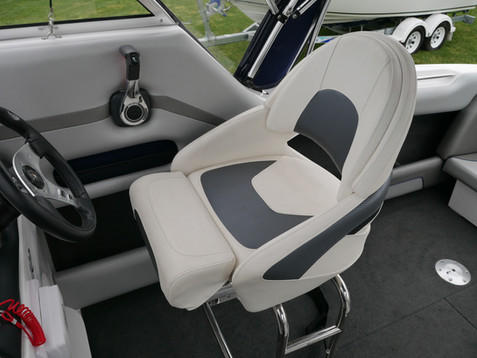

  • Swivel Bucket Seats on Fixed Pedestals with Seat Slides (Non-Flip Up Seats)
  • Twin-Core Tinned Wiring to Dash
  • Underbunk Cabin Storage with Vinyl-Upholstered Bunk Cushions
  • Underfloor Fuel Tank 130L with Breathers that Drain to Engine Well, Fuel Sender, Filler Cap in Engine Well
  • Underfloor Kill Tank/ Storage Locker - Moulded Fibreglass (Aprox 200lt)
  • Water-Resistant Switch Panel
  • Windscreen Grab Rail
  • Windscreen Toughened Glass Front Screen with Durable Perspex Sides
