Revival 520 Sportz

$0.00
* Sail Away
Send an Enquiry
imgi_11_61eee9_2ddc68d83ec14f748189a0a5238904a5~mv2_d_4032_3024_s_4_2
imgi_22_61eee9_7a58fbea65eb4d7b9ac64af8630206e5~mv2_d_2008_3008_s_2
imgi_23_61eee9_e0a4a64965194d15a5fd2d685019133a~mv2_d_3008_2008_s_2
imgi_36_61eee9_13f48da12e8e4d48b8ad074b7df2606c~mv2_d_3008_2008_s_2
imgi_37_61eee9_2ddc68d83ec14f748189a0a5238904a5~mv2_d_4032_3024_s_4_2
imgi_39_61eee9_d631c1a74d2748ed93c7e4c1f576e510~mv2_d_4032_3024_s_4_2
imgi_41_61eee9_591eb0b320f54bc09b8a1921a2a9ceb4~mv2_d_3008_2008_s_2
imgi_48_61eee9_13f48da12e8e4d48b8ad074b7df2606c~mv2_d_3008_2008_s_2
imgi_8_61eee9_14027a902e4d4f8f81d5dc2ff2f653c5~mv2_d_5693_3801_s_4_2
Click to zoom / enlarge this image
imgi_11_61eee9_2ddc68d83ec14f748189a0a5238904a5~mv2_d_4032_3024_s_4_2
imgi_22_61eee9_7a58fbea65eb4d7b9ac64af8630206e5~mv2_d_2008_3008_s_2
imgi_23_61eee9_e0a4a64965194d15a5fd2d685019133a~mv2_d_3008_2008_s_2
imgi_36_61eee9_13f48da12e8e4d48b8ad074b7df2606c~mv2_d_3008_2008_s_2
imgi_37_61eee9_2ddc68d83ec14f748189a0a5238904a5~mv2_d_4032_3024_s_4_2
imgi_39_61eee9_d631c1a74d2748ed93c7e4c1f576e510~mv2_d_4032_3024_s_4_2
imgi_41_61eee9_591eb0b320f54bc09b8a1921a2a9ceb4~mv2_d_3008_2008_s_2
imgi_48_61eee9_13f48da12e8e4d48b8ad074b7df2606c~mv2_d_3008_2008_s_2
imgi_8_61eee9_14027a902e4d4f8f81d5dc2ff2f653c5~mv2_d_5693_3801_s_4_2

Our versatile R520 SportZ Edition hits the water with all the essentials and many so called “extras” that other boat brands force you to pay for: bowrails, bilge pumps, internal lighting, under-floor fuel tanks, dry and wet storage and loads more. Simply strap on the outboard of your choice and get it wet.

Mechanical Steering

Steering

5.25 metres

Length

Fibreglass

Hull Material

Mono

Hull Type

Details Specifications Features & Options
Boat Details
  • Make: Revival
  • Name: 520 Sportz
  • Model Number: 520 Sportz
  • Year: 2026
  • Length: 5.25 metres
  • Width: 2.2 metres
  • Dry Weight: 650 kg
  • Hull Material: Fibreglass
  • Hull Type: Mono
  • Passenger Capacity: 6
  • Boat Usage: Fishing
  • Steering: Mechanical Steering
  • Warranty: Contact Dealer

Hull Length (mm)5250mm
Hull Beam (mm)2200mm
Transom Deadrise20 degrees
Transom Height (inches)25"/XL

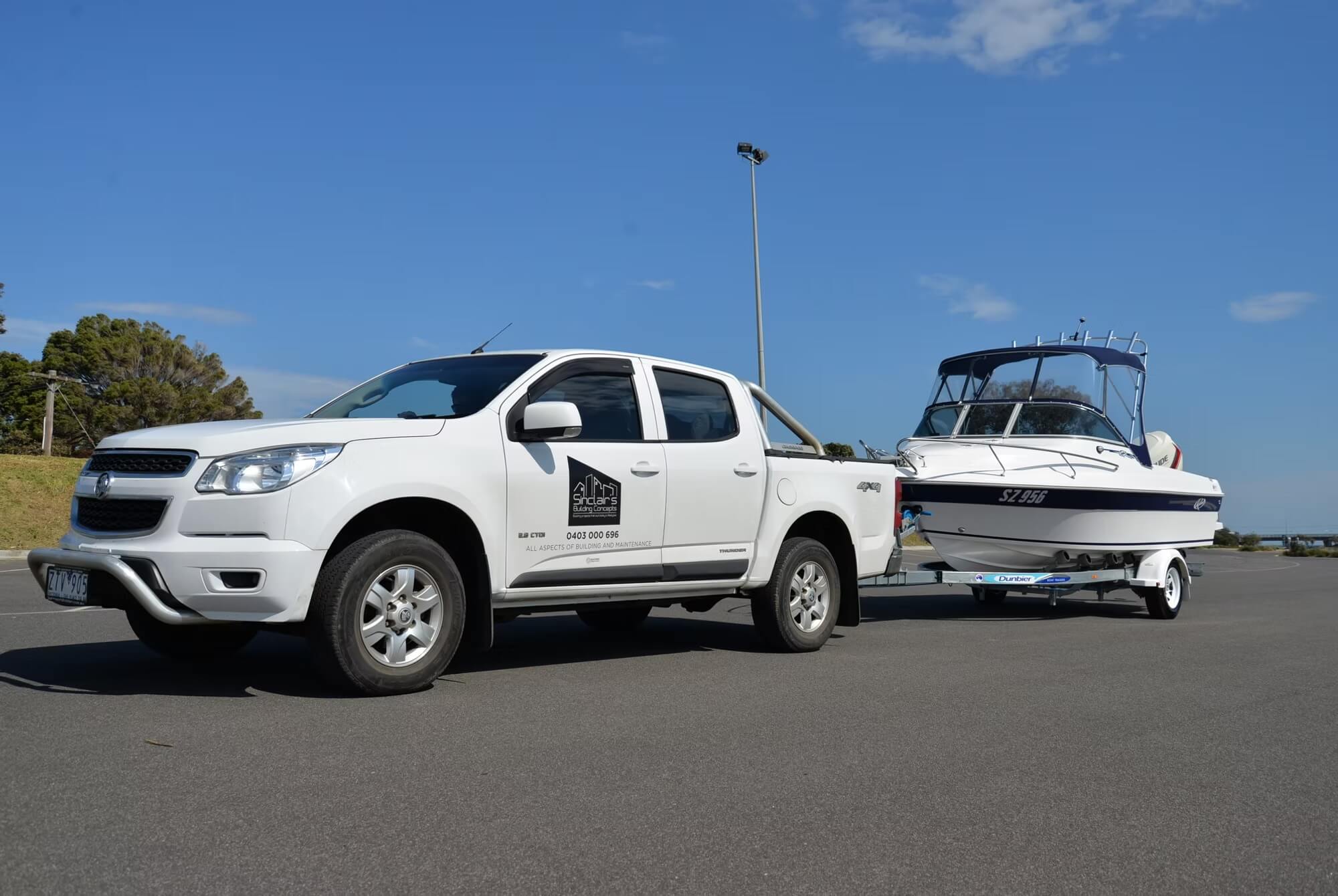

Height on Trailer to Top of Windscreen2070mm
Overall Length on Trailer (mm)6900mm (Approx.)
Draft (mm)300mm (Approx.)
Hull Weight (kg) - Dry650kg
BMT Weight (kg) - Dry1250kg
Fuel Capacity (L)100L
Number of People6 Adults
Horsepower75 - 115hp
Max Outboard Weight (kg)195kg
Estimated Cruise Speed (kph) w/Mid-Range hp42kph
Estimated WOT Speed (kph) w/Mid-Range hp72kph
Internal Cockpit Length (mm)1800mm
Internal Cockpit Beam (mm)1800mm

STANDARD HULL FEATURES

  • 10 Year Hull Warranty
  • Anchor Storage Compartment with Lockable Lid
  • Foam-Filled Hull
  • Hand Laminated Fibreglass Hull and Deck
  • High Quality Gelcoat Hull & Deck (Std Colour is Ultra White Premium)
  • Hull & Deck - All White Gelcoat with Edition Specific Stripes and Graphics

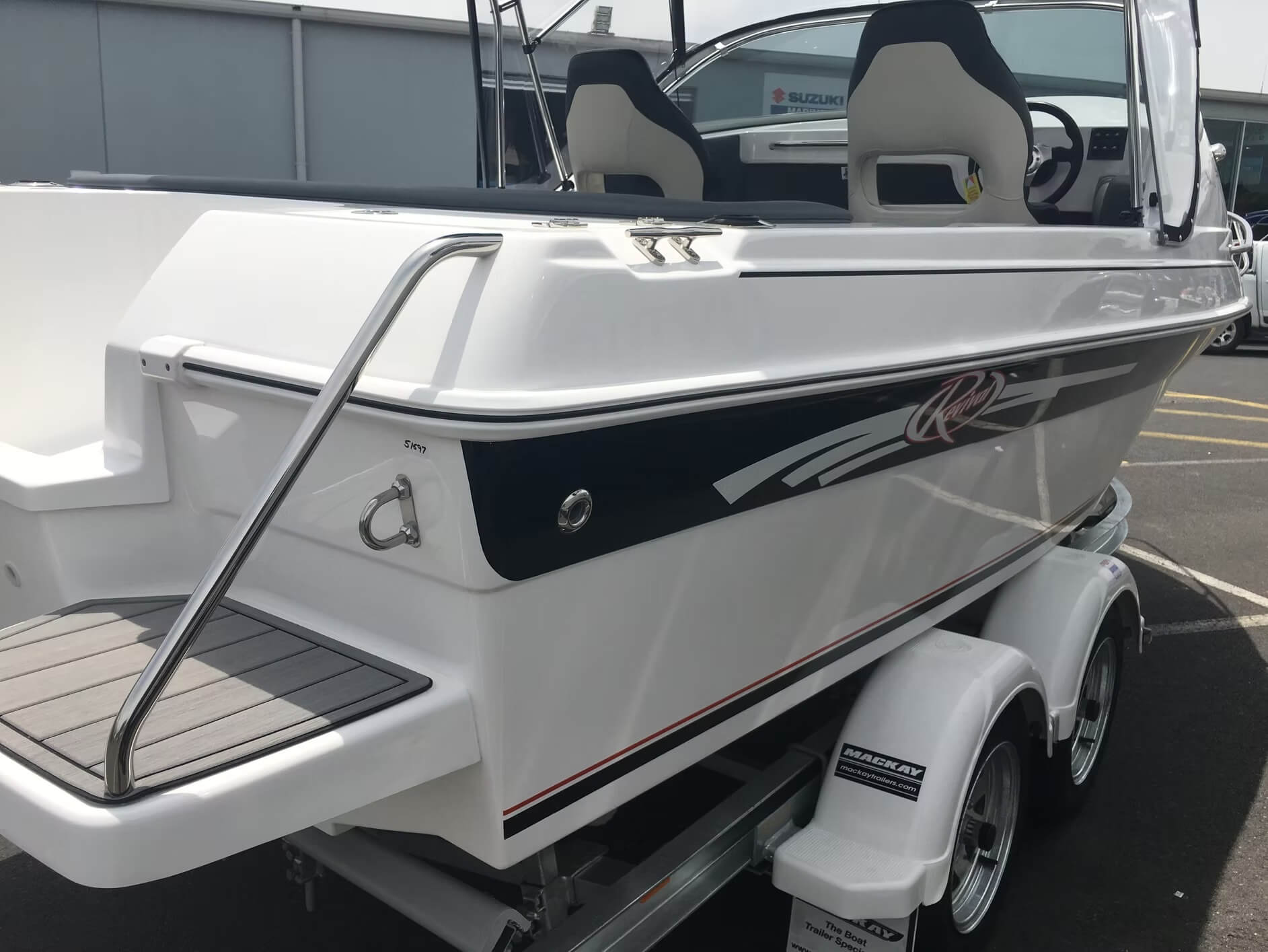

  • Rear Tow Eyes

STANDARD DECK FEATURES

  • Bollard Split - Stainless Steel
  • Bow Sprit (Moulded) with Stainless Steel Bow Roller
  • Large Bow Storage/Casting Area Compartments in Walkthrough & Floor Storage Boxes with Carpeted Hinged Lids
  • Rear Fixed Cleats - Stainless Steel (2)
  • Split Bowrails - Marine-Grade Stainless Steel (Australian Made)

STANDARD COCKPIT FEATURES

  • Carpeted Floor and Sides - Glued
  • Cockpit Side Pockets - Moulded Fibreglass (Gelcoated) White
  • Ports and Starboard Recessed Grab Rails

STANDARD FISHING FEATURES

  • Stainless Steel Economy Rear Rod Holders (2)

STANDARD SEATING

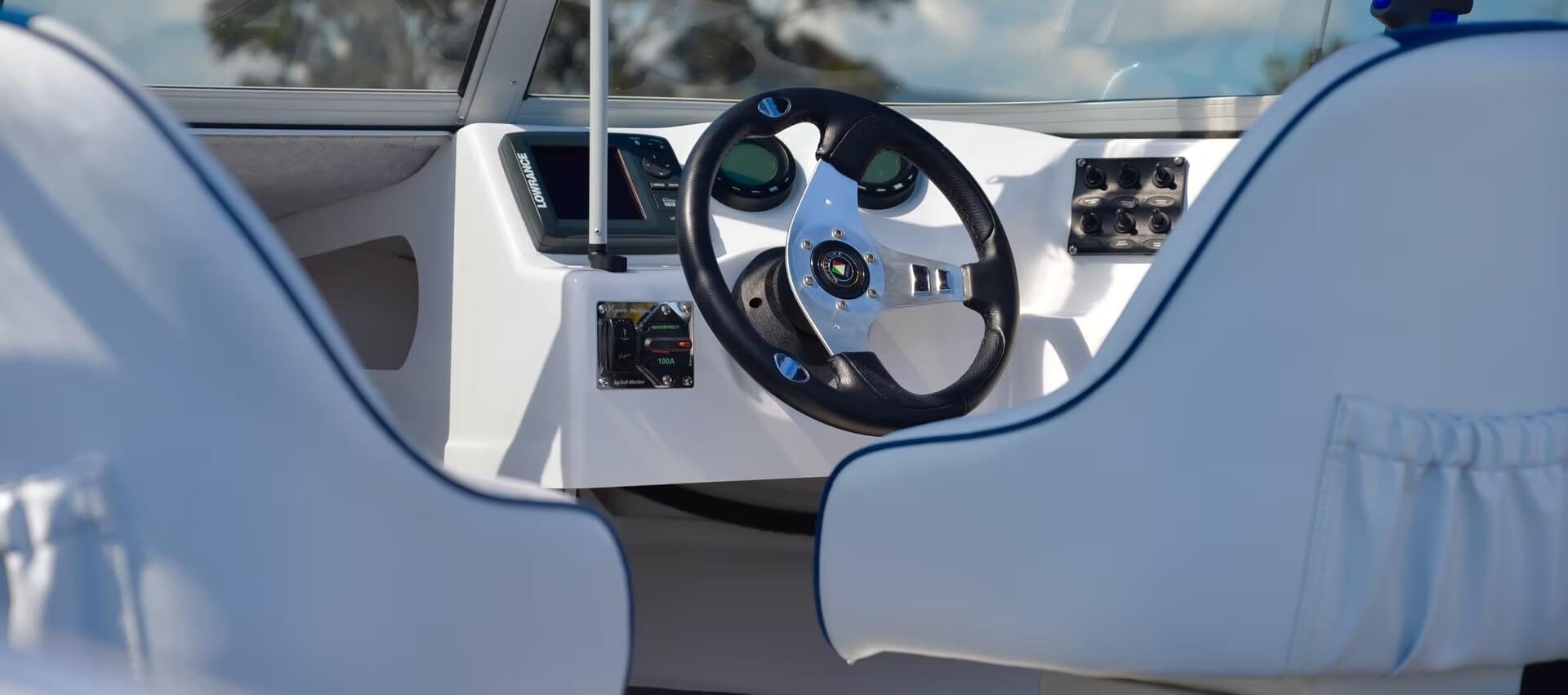

  • Compact Helm Seats on Fixed Pedestal with Slide & Swivel (Port & Starboard) - Non Flip Up in Grey with Charcoal Trim
  • Upholstered Full Width Removable Fold-Down Rear Lounge
  • Padded Transom Backrest

STANDARD STORAGE FEATURES

  • Rear Port & Starboard Bait Wells (Non-Plumbed)
  • Underfloor Kill Tank Storage Locker - Moulded Fibreglass
  • Port Side Coaming Storage Compartment

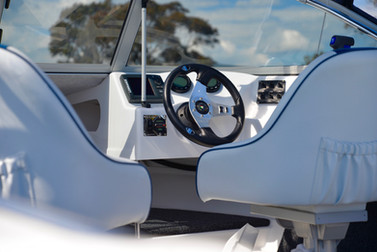

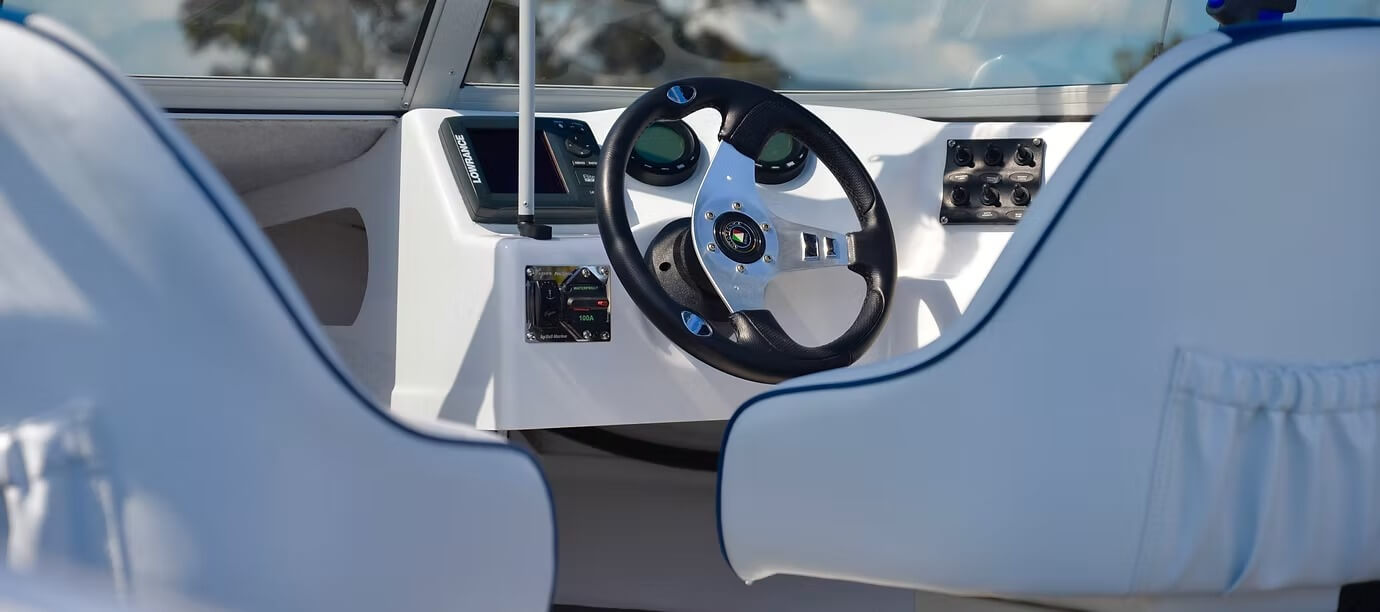

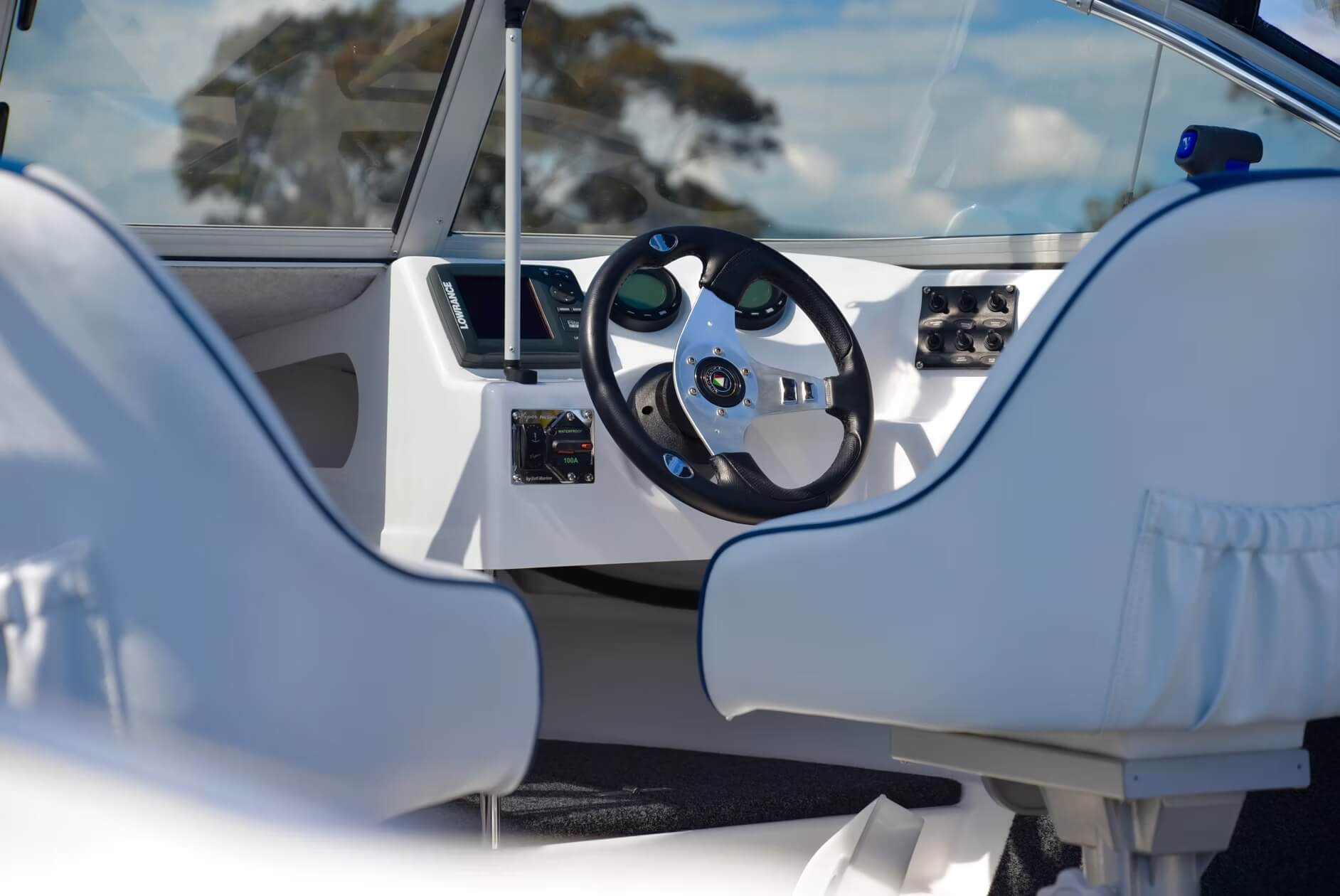

STANDARD STEERING

  • Mechanical Non-Feedback Steering System

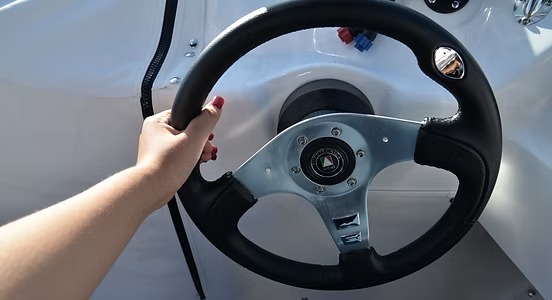

  • Multi Spoke Steering Wheel

STANDARD HELM & PASSENGER FEATURES

  • Panic Rail for Passenger - Stainless Steel
  • Lockable Glove Box Port Side

STANDARD ELECTRICAL & LIGHTING

  • Coaming Lights x 2 (Round)
  • Navigation Lights
  • Water-Resistant Switch Panel
  • 1150 GPH Bilge Pump Hose and Outlet

STANDARD WINDSCREEN

  • Windscreen Grab Rail
  • Windscreen (3-Piece with Support Brace)

STANDARD FUEL SYSTEM

  • Underfloor 100L Polyethylene Fuel Tank with Sender
  • Fuel Tank Breathers and Filler Cap in Engine Well

STANDARD GRAPHICS & BADGING

  • Colour-Coordinated "SportZ" Graphics
