Revival 530 X-Rider

$0.00
* Sail Away
Send an Enquiry
DSC_5228.JPG_11zon
DSC_5258.JPG_11zon
fullsizeoutput_4a42
fullsizeoutput_4a45
IMG_1570-1
IMG_1572
IMG_1581
Click to zoom / enlarge this image
DSC_5228.JPG_11zon
DSC_5258.JPG_11zon
fullsizeoutput_4a42
fullsizeoutput_4a45
IMG_1570-1
IMG_1572
IMG_1581

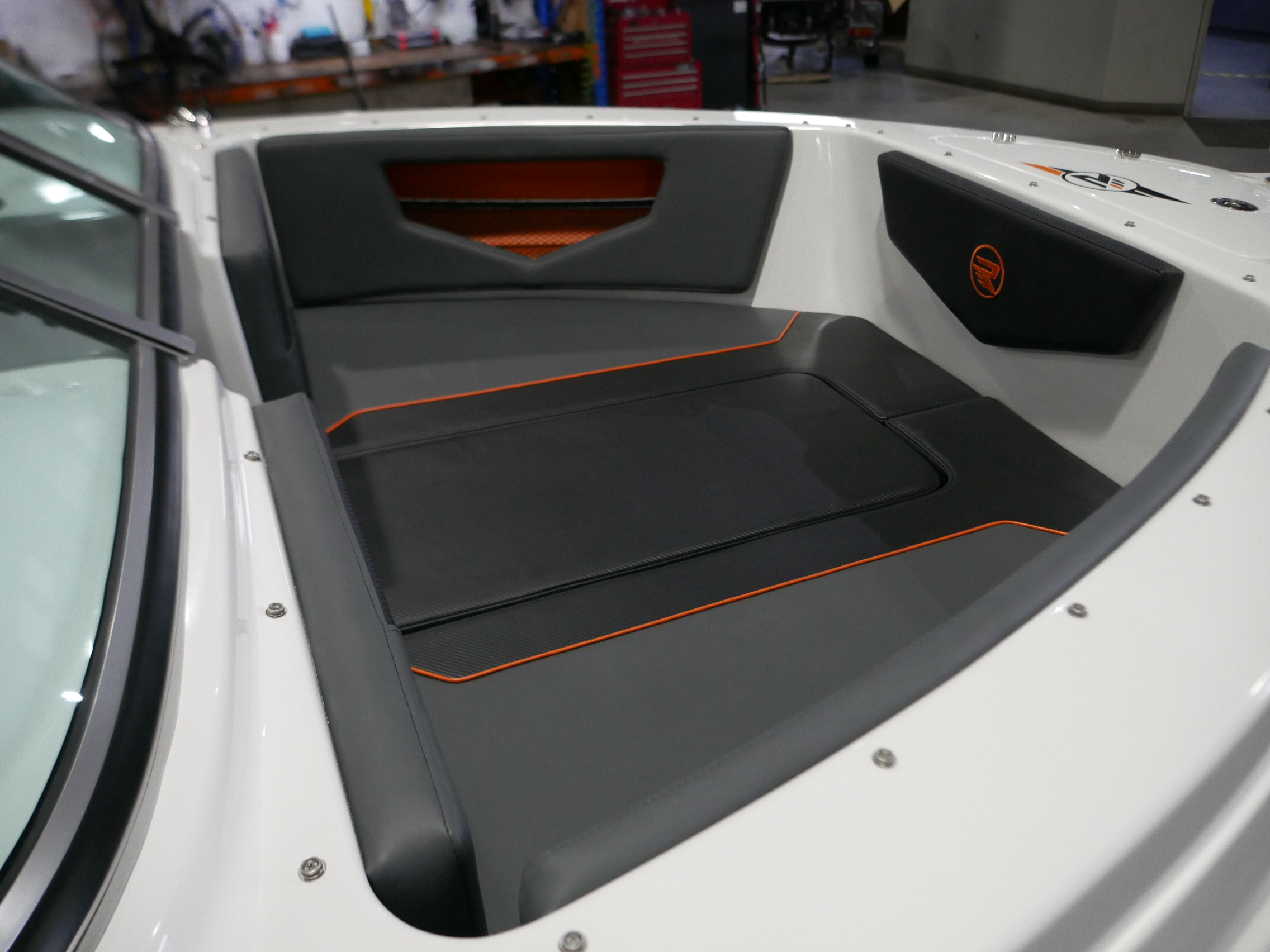

The all new R530 X-Rider borrows the capable R530/R525 platform and dials up the fun factor. Featuring a lockable anchor well capable of accommodating a full-sized winch, a convertible bow-zone, generous underfloor storage, bait well and rear drop in door, the R530 X-Rider flicks a middle finger salute at tinny brigade that have filled this niche...until now!

Mechanical Steering

Steering

5.3 metres

Length

Fibreglass

Hull Material

Mono

Hull Type

Details Specifications Features & Options
Boat Details
  • Make: Revival
  • Name: 530 X-Rider
  • Model Number: 530 X-Rider
  • Year: 2026
  • Length: 5.3 metres
  • Width: 2.2 metres
  • Dry Weight: 1325 kg
  • Hull Material: Fibreglass
  • Hull Type: Mono
  • Passenger Capacity: 6
  • Boat Usage: Fishing
  • Steering: Mechanical Steering
  • Warranty: Contact Dealer
Engine Details
  • Brand: Mercury
  • Horsepower: 115
  • Fuel Capacity: 100
  • Drive Type:
  • Steering:

Hull Length (mm)5300mm
Hull Beam (mm)2200mm
Transom Deadrise20 degrees
Transom Height (inches)25"/XL
Height on Trailer to top of Windscreen2100mm
Overall Length on Trailer (mm)6500mm
Draft (mm)300mm
Hull Weight (kg) - dry650kg
BMT Weight (kg) - dry1350kg* (Subject to variation)
Fuel Capacity (lt)100lt
Number of People6 Adults
Horsepower90 - 115hp
Max Outboard Weight (kg)195kg
Estimated Cruise Speed (kph) w/Mid-Range hp42kph
Estimated WOT Speed (kph) w/Mid-Range hp72kph (135HP)
Internal Cockpit Length (mm)1800mm (Aprox)
Internal Cockpit Beam (mm)1800mm (Aprox)
  • Anchor Storage Compartment with Large Front Opening Hatch
  • Bilge Pump Hose and Outlet
  • Bow Rider Cushions and Upholstered BackRests with Upholstered Storage Pockets (Centre Infill Optional)
  • Bow Roller - Stainless Steel
  • Carpeted Floor
  • Cockpit Side Pockets - Carpeted with Vinyl Trim
  • Drink Holders - x 4 (Black Plastic)
  • Foam-Filled Hull (From 1st July 2019)
  • Glove Box - Large Fully-Carpeted
  • Mechanical Steering with 3-Spoke Wheel
  • Hull and Deck - All White Gelcoat with Edition Specific Stripes and Graphics
  • Large Bow Seating Area with Upholstered Seats Atop Concealed Storage Bins
  • Navigation Lights
  • Padded Side Pockets - Vinyl Detailing
  • Passenger Grab Handle  - Black
  • Rear Starboard-Side Storage Locker/Bait Well that Drains Overboard - Not Plumbed
  • Rear Fixed Cleats - Stainless Steel (2)
  • Rear Door/Step Through Transom
  • Rear Tow Eyes - Stainless Steel (2)
  • Swivel Bucket Seats on Fixed Pedestals with Seat Slides
  • Twin-Core Tinned Wiring to Dash
  • Two-Tone or Slab-side Coloured Gelcoat
  • Underfloor Fuel Tank 100L with Breathers that Drain to Engine Well, Fuel Sender, Filler Cap in Engine Well
  • Underfloor Kill Tank/ Storage Locker -  (Aprox 150lt)
  • Water-Resistant Switch Panel
