Revival 520 Offshore

Send an Enquiry

61eee9_3caab06c2c274936b5fc8b10260a1bdcmv2_d_3008_2008_s_2

61eee9_3cfb44f383cb4d54958ee5ba83fe14a5mv2_d_1817_1363_s_2

61eee9_3fa2a2a043cb41c49a246901491ff1c0mv2_d_4032_3024_s_4_2

61eee9_7af9dabc25d146a78c672eb76b192089mv2_d_1817_1363_s_2

61eee9_7fd841cdfcc148f89f404f8f10380a1dmv2_d_2008_3008_s_2

61eee9_b4fbe2846c584667be5367613a20547fmv2_d_3008_2008_s_2

61eee9_b8400eecf2884df085abcc02b1c06dbemv2_d_3008_2008_s_2

61eee9_c16851b047cb445699e5622536698b1fmv2_d_3008_2008_s_2

Click to zoom / enlarge this image

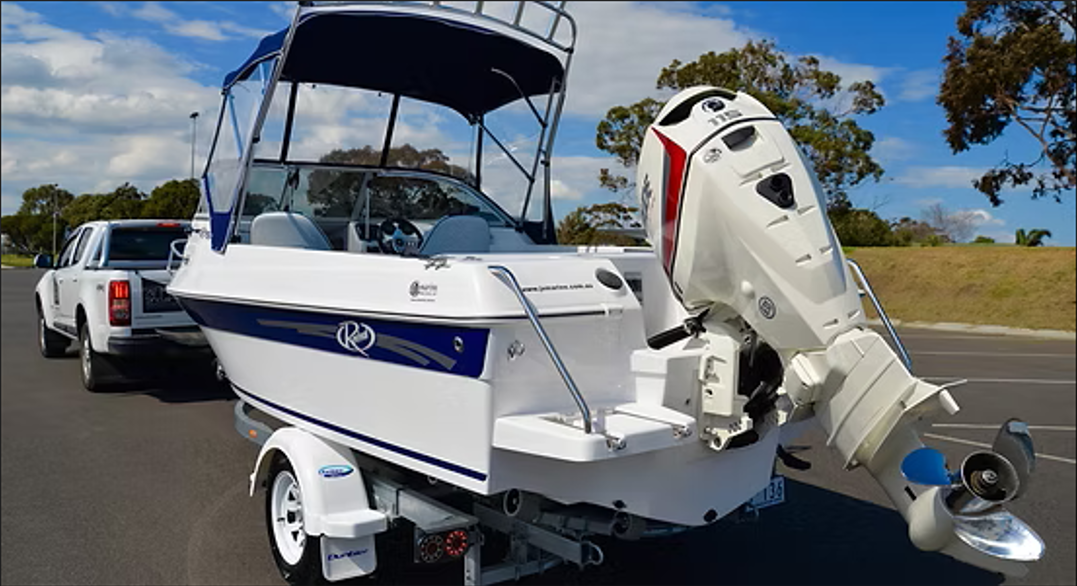

Revival OffShore Editions spice up the SportZ’s already impressive inventory with fishing-focussed inclusions to help you snare to snare the catch of the day: upgraded flip-bolster seats, tackle storage, bimini and clears, alloy or stainless rocket launchers, recessed rod storage, and more. Fish don’t tell time or care about the weather, so shouldn’t your new boat be just as mission-ready?

Mechanical Steering

Steering

5.25 metres

Length

Fibreglass

Hull Material

Mono

Hull Type

Details Specifications Features & Options

Boat Details

Make: Revival
Name: 520 Offshore
Model Number: 520 Offshore
Year: 2026
Length: 5.25 metres
Width: 2.2 metres
Dry Weight: 650 kg

Hull Material: Fibreglass
Hull Type: Mono
Passenger Capacity: 6
Boat Usage: Fishing
Steering: Mechanical Steering
Warranty: Contact Dealer

Hull Length (mm)5250mm

Hull Beam (mm)2200mm

Transom Deadrise20 degrees

Transom Height (inches)25"/XL

Height on Trailer to Top of Windscreen2070mm

Overall Length on Trailer (mm)6900mm (Approx.)

Draft (mm)300mm (Approx.)

Hull Weight (kg) - Dry650kg

BMT Weight (kg) - Dry1250kg

Fuel Capacity (L)100L

Number of People6 Adults

Horsepower75 - 115hp

Max Outboard Weight (kg)195kg

Estimated Cruise Speed (kph) w/Mid-Range hp42kph

Estimated WOT Speed (kph) w/Mid-Range hp72kph

Internal Cockpit Length (mm)1800mm

Internal Cockpit Beam (mm)1800mm

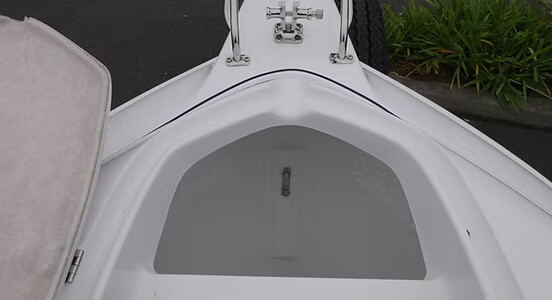

Anchor Storage Compartment with Large Front Opening Hatch
Backrest and Bunks in Cabin - Upholstered Vinyl
Bilge Pump Hose and Outlet
Bollard Split - Stainless Steel

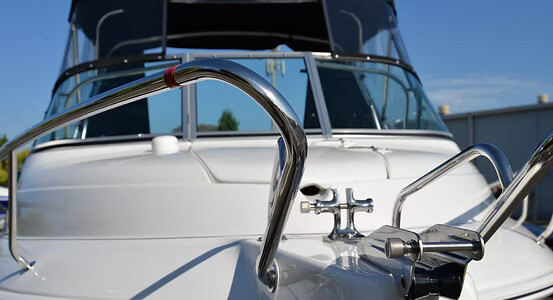

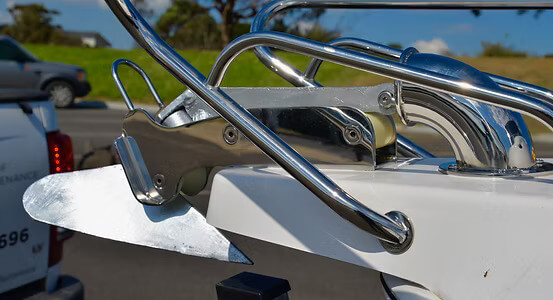

Bow Roller - Stainless Steel

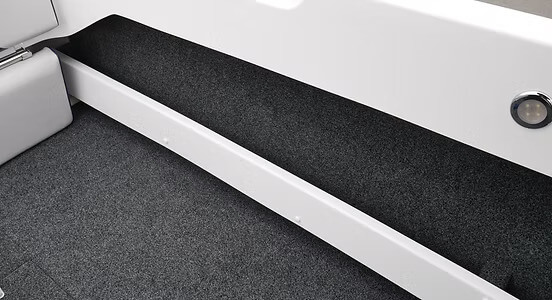

Carpeted Floor and Sides - Glued
Coaming Lights (2)
Hull and Deck - All White Gelcoat with Edition Specific Stripes and Graphics
Large Forward Storage/Casting Area with Open and Concealed Storage Bins
Mechanical Steering
Navigation Lights
Padded transom Backrest Rear of Cockpit with Removable Fold-Down Rear Lounge
Panic Rail for Passenger - Stainless Steel
Port-side Coaming Storage Compartment
Rear Bait Wells that Drain Overboard - Not Plumbed
Rear Cleats - Stainless Steel (2)
Rear Tow Eyes - Stainless Steel (2)
Split Bowrails - Stainless Steel
Standard Plastic Rear Rod Holders (2)
Swivel Bucket Seats on Fixed Pedestals with Seat Slides (Non-Flip Up Seats)
Twin-Core Tinned Wiring to Dah
Underfloor Fuel Tank 100L with Breathers that Drain to Engine Well, Fuel Sender, Filler Cap in Engine Well
Underfloor Kill Tank/ Storage Locker - Moulded Fibreglass

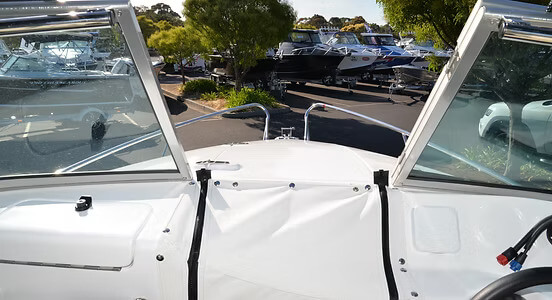

Walk-Through Windscreen and Foredeck to Anchor Locker
Water-Resistant Switch Panel
Windscreen Grab Rail for Enhanced Strength and Convenience
